PLATE PROCESSOR

Plate Processor Raptor 85

Plate types : thermal offset plates

Plate width Min. Max. : 200 - 850 mm (7.9 - 33.5”)

Plate length Min.Max. : 290 mm (11.4”)1100 mm (43.3")

Plate thickness Min. - Max. : 0.15 - 0.30 mm (0.006 - 0.012”)

Plate speed : 40 - 120 cm/min. (15.7 - 47.21 “/min.)

Brush speed (revolutions per min) : 60 - 150 rpm

MECHANICAL SPECIFICATIONS :

Temperatures

Developer Min. - Max. : 20 - 40°C (68 - 104°F)

Dryer, process Min. - Max. : 35 - 55°C (95 - 131°F)

Tank volumes ex. hoses, pumps etc. :

Developer : 22 l (5.8 US gal.)

Wash : 13.5 l (3.6 US gal.)

Tank volumes ex. hoses, pumps etc. :

Water Supply Min. - Max. : 1 - 6 bar (15 - 87 psi)

Water consumption: In stand-by : 0.0 l/min. (0.0 US gal/min.)

(if no wash recirc.) In operate : 32 l/min. (8.4 US gal/min.)

Noise emission Max. : 61 dB

ELECTRICAL SPECIFICATIONS :

Power Supply :

EUR-models : 3W + N + PE ˜ 400V / 3x13 Amps, 50-60 Hz

Voltage tolerances : ± 10%

Power Consumption :

EUR-models Max. : 6500 Watts

US-models Max. : 6500 Watts

WEIGHTS :

Processor with pre-heat and pre-wash :

Shipping (w.o tables, w. 3 brushes) : 430 kg (948 lbs)

Empty (w.o. tables, w. 3 brushes : 307 kg (677 lbs)

With liquids : approx. 350 kg (750 lbs)

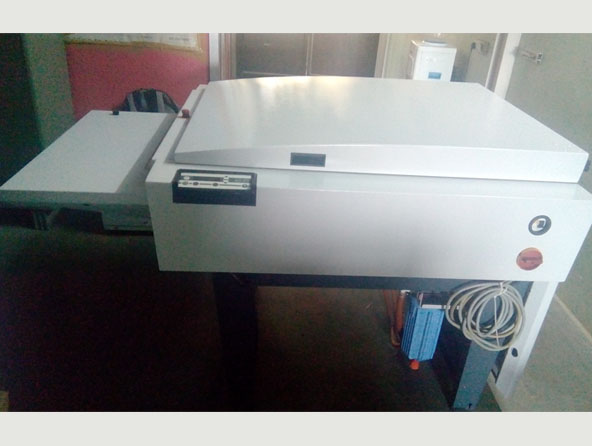

Plate Processor Raptor 68

Plate types : thermal offset plates

Plate width Min. Max. : 200 - 675 mm(7.9 - 26.6”)

Plate length Min.Max. : 290 mm (11.4”) 1100 mm (43.3")

Plate thickness Min. - Max. : 0.15 - 0.30 mm(0.006 - 0.012”)

Plate speed : 40 - 120 cm/min.(15.7 - 47.21 “/min.)

Brush speed (revolutions per min) : 60 - 150 rpm

MECHANICAL SPECIFICATIONS :

Temperatures

Developer Min. - Max. : 20 - 40°C (68 - 104°F)

Dryer, process Min. - Max. : 35 - 55°C (95 - 131°F)

Tank volumes ex. hoses, pumps etc. :

Developer : 17 l (4.5 US gal.)

Wash : 11 l (2.9 US gal.)

Water Supply Min. - Max. : 1 - 6 bar (15 - 87 p

Water consumption: In stand-by : 0.0 l/min. (0.0 US gal/min.)

(if no wash recirc.) In operate : 28.0 l/min. (7.4 US gal/min.)

Noise emission Max. : 61 dB

ELECTRICAL SPECIFICATIONS :

Power Supply : ˜ 3W + N + PE

EUR-models : ˜ 400V / 3x13 Amps, 50-60 Hz

Voltage tolerances : ± 10%

Power Consumption :

EUR-models Max. : 6500 Watts

US-models Max. : 6500 Watts

WEIGHTS :

Processor with pre-heat and pre-wash :

Shipping (w.o tables, w. 3 brushes) : 370 kg (816 lbs)

Empty (w.o. tables, w. 3 brushes : 265 kg (584 lbs)

With liquids : approx. 300 kg (650 lbs)
